Abrasive Discs cutting machine

Gerson Fiber Abrasive Discs cutting machine is die cutting machine for fiber abrasive discs males and females,Abrasives zirconia alumina resin fiber sanding disc,Abrasives ceramic resin fiber sanding disc, abrasive sanding discs, fiber grinding discs, and roloc discs  etc.,

There have two kinds of Fiber Abrasive Discs cutting machine :

1. Computer numerical control traveling head die cutting

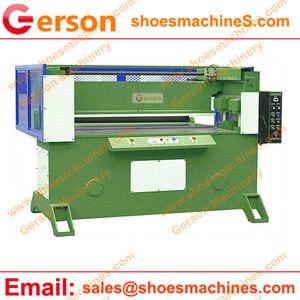

 Abrasive Discs cutting machine

Abrasive Discs cutting machine

Fully automatic cutting system of abrasive in roll material.Integrated feeding, cutting, knock-out and stacking system provide a total solution of abrasive production.

Model GRMA-25,30,40,50,60,80,100
Max Cutting Force 25 to 100 tons
Cutting table Widths 1800~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,

2.Receding Head or fixed head Cutting Machine for hard fiber Abrasive Discs.

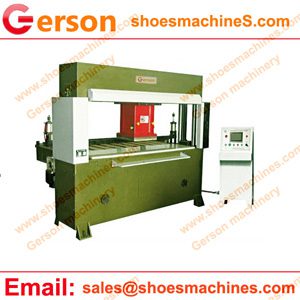

Abrasive Discs cutting machine
Abrasive Discs cutting machine

1.The upper receding beam or head can be moved forwards and backwards and the distance is fine adjustable for the convenience of placing cutting materials.
2.Cutting area same as the beam/head area ,so it is great for large cutting dies.
3.The cutting material remains stationary during the receding cutting.
4.Larger head, bed and tonnage needs can be custom ordered.

Model Maximum Cutting power(ton) Area of work table(mm) Press Board Stroke      range Distance between upper pressing board and worktable Motor power Machine dimensions(mm) Net weight
GRH-35 350KN(35T) 1600*610mm 1600*600mm 0-110mm 60-160mm 3KW 2320*1400*1520mm 2400kg
GRH-50 500KN(50T) 1600*610mm 1600*600mm 0-110mm 60-160mm 4KW 2320*1600*1720mm 4000kg
GRH-80 800KN(80T) 1600*820mm 1600*800mm 0-120mm 60-180mm 4KW 2320*1600*1720mm 5500kg
GRH-120 1200KN(120T) 1600*820mm 1600*800mm 0-120mm 60-180mm 5.5KW 2320*1600*1720mm 6500kg

**Cutting Force more than 120T or upwards can custom made.
**Cutting Bed more than 1600x800mm or upwards can custom made.
