Die Cutting Press Machine Manufacturer For Sale

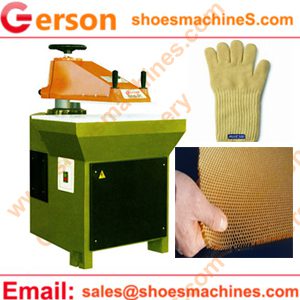

Aramid Nomex Fiberglass cutting machine

Aramid Nomex Fiberglass cutting machine is an electro-hydraulic cutting machine applicable for die cutting operation of Aramid Nomex fiberglass glove ,Aramid kevlar fiber safty products,Aramid Fibre Kevlar fabric products,Aluminised Fortamid sheet etc.,, so it has to be operated by workers.

Aramid Nomex Fiberglass cutting machine

Aramid Nomex Fiberglass cutting machine

Key Feature
1. Even though the machine is not highly automated, it can die cut a large number of materials even in multilayer.
2. The operating principle of the machine is simple: hydraulic power drives the cutting head down to press the cutting die on the materials.
3. The cutting head can be easily pushed aside whenever in need.
4. The auto lubrication works on the whole machine body to protect it from abrasion, thus making it work for longer time.
5. Customers can ask for desired cutting pressure and cutting table area.

Model

GRA,GSB,GR

Max cutting force

8,10,12,14/15/16,18,20,25,27,28 tons

Working area

650,800,900,1000,1200X500,600mm

Swing arm width

370mm,500mm,600mm

Cutting stroke

90mm

Motor power

1.5KW

Electric Supply Voltage

3×440/415/400/380/220/200V, 50/60 Hz

Single phase 240V/220V, 50/60 Hz

Machines dimensions

1000X1020X1410mm

Packing size

1100X1100X1600mm

N.W(with oil)

480-980kg

G.W

500-1000kg
