Beam cutting machine

Gerson beam cutting machine have two types.One is fixed beam cutting machine ,the other is movable beam cutting machine.

One.fixed beam cutting machine

also called fixed head cutting machine or fixed beam press  which is die cutting machine with fixed beam or head.

Beam cutting machine
Beam cutting machine

This die cutting machines most used for large area soft material die cutting .The cutting area can from 1250mm ×500mm to 2000mm×2000mm.The cutting power or pressure from 30 tons to 500 tons.

1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.

2.The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.

3.Precise cutting balance can effectively reduce the loss of knife mold and cutting plate.

4.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.

5. The following equipment tools can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Two.movable beam cutting machine

Movable beam cutting machine is a beam cutting machine with movable beam ,This beam cutting machine is larger dies can be used in comparisons to other types of presses. In theory where the beam cutting area is the same as the bed cutting area a perimeter die of that size can be used to cut.

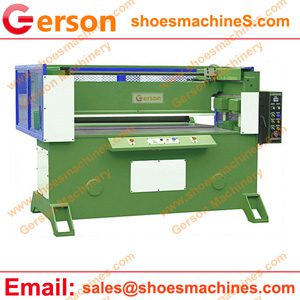

Receding Beam cutting Press

Material Application:

Textile,Plastics,Rubber,Foam,Composites,Paper,Paperboard,Wood,Leather,Cork,Felt

Industry products aplication:

Gasket,Filters,Abrasives,Shoe Component,Sponge,Packing
Shoulder Pad,Caps,Linings,Shirt Collars,Box,Brassieres,Floor Mats
Carpets,Toys,Medical Supplies,Other Suitable Material

Feature:

1.The upper receding beam or head can be moved forwards and backwards and the distance is fine adjustable for the convenience of placing cutting materials.
2.Cutting area same as the beam/head area ,so it is great for large cutting dies.
3.The cutting material remains stationary during the receding cutting.
4.Larger head, bed and tonnage needs can be custom ordered.

Model GRH-40T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X800mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

**Cutting Force more than 120T or upwards can custom made.
**Cutting Bed more than 1600x800mm or upwards can custom made.
