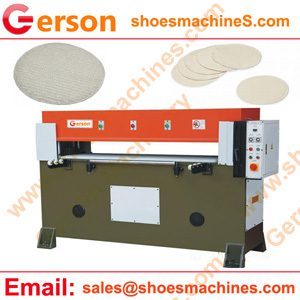

Cotton Pad Cutting Machine

Cotton pad cutting Machine is widely used in making auto instrument panel insulating pad, PU sound insulation, auto absorbent cotton pad, PET sound-absorbing cotton pad, auto acoustic polyester non-woven felt etc.
Cotton  Cutting Machine
Cotton Cutting Machine

Key Feature
1. Products which have common with the mentioned ones can also be cut by the machine.
2. Dies attached to the beam or laid on the materials can cut out various shapes as requested.
3. Different feed device shall be optionally installed to pursue specific purposes.
4. Built in four-column structure, fitted with superior hydraulic system, double cylinders and auto balance device, the machine is able to die cut materials equably and precisely.
5. Special request can customer raise.

Model GRB(C)-25T to 1500T or more
Max cutting force(T) From 25 Tons to 1500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
