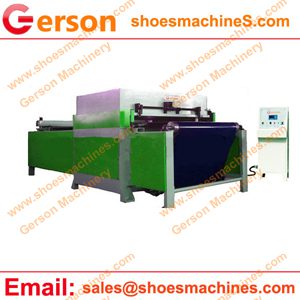

Die Cutting On Conveying Belt Machine

Die Cutting On Conveying Belt Machine perfectly satisfies the needs of cutting plastic, rubber, leather and the similar low-rigid softand semi rigid material machine.

 Die Cutting On Conveying Belt Machine

Die Cutting On Conveying Belt Machine

Key Feature
1. More than one cylinder can be connected perfectly by the aid of superior connection set, 2 oil cylinders and 4-column structure.
2. High accuracy and longer working life can be achieved by lubrication autoragulation mechanism.
3. The conveyor made of nylon is preeminent enough to undertaker the task to inlet, outlet and serve as the cutting platform.
4. Interchangeable cutting size and force will cater to different needs.
5. Special specifications can be satisfied by our long-term practice, creditable quality and good prestige.

Model GRBC-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
1800 to 18500
