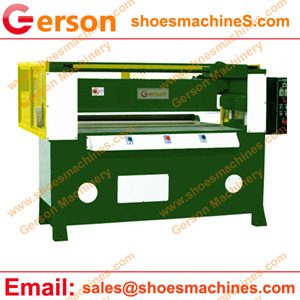

Movable beam press

Gerson movable beam press is one type of beam press with movable beam or head .It is widely used for die cutting the soft and semi-rigid non-metalic material : plastic,rubber,foam,paper,board,card,leather etc.,

Movable beam press
Movable beam press

1.it is fast, easy and safe to operate, with unrivalled access and visibility. the cutting head is motor driven forwards and backwards to reveal the cutting area so that perfect access and visibility are assured.

2.the operator places the cutting tool on the material, the movable beam travels forward, down, and retracts to reveal the cut components.

3. Cutting Single or multiple layers sheet or roll material

4.The machine body is strong construction,four column, twin cylinder operation and double mechanical balancing system

A variety of feed systems can be specified to enhance productivity even further.

**Cutting Force more than 120T or upwards can custom made.
**Cutting Bed more than 1600x800mm or upwards can custom made.

Model Maximum Cutting power(ton) Area of work table(mm) Press Board Stroke      range Distance between upper pressing board and worktable Motor power Machine dimensions(mm) Net weight
GRH-35 350KN(35T) 1600*610mm 1600*600mm 0-110mm 60-160mm 3KW 2320*1400*1520mm 2400kg
GRH-50 500KN(50T) 1600*610mm 1600*600mm 0-110mm 60-160mm 4KW 2320*1600*1720mm 4000kg
GRH-80 800KN(80T) 1600*820mm 1600*800mm 0-120mm 60-180mm 4KW 2320*1600*1720mm 5500kg
GRH-120 1200KN(120T) 1600*820mm 1600*800mm 0-120mm 60-180mm 5.5KW 2320*1600*1720mm 6500kg
