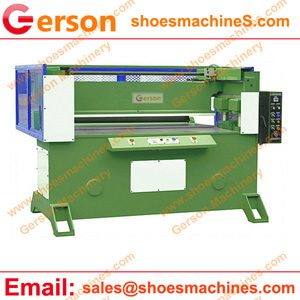

Moving Beam Cutting Press Machine

Gerson moving beam cutting press machine is die cutting press with movable beam  .Gerson also have the fixed beam die cutting machine.

Moving Beam Cutting Press Machine
Moving Beam Cutting Press Machine

The moving or movable beam press advantage:

1.This beam press with the moving beam to give maximum daylight and clearance for sheeted goods or this press can be equipped with an optional feed assist to feed rolled or sheeted goods.
2. Four column construction which utilizes an internal mechanical levelling system to insure a parallel cutting stroke and full uniform pressure over the entire cutting bed, even when the cutting dies are not in the center of the cutting area.
3.A parallel cutting stroke is essential for obtaining accurate cut parts and for long pad and die life.
4.Material feeding systems are available :roll or sheet material auto feeding etc.,
5.The cutting beam, bed and cutting force needs can be custom built.

Model GRH(A)-25 to 500
Max cutting force(T) From 25T to 500T
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1400 to 16500
1500 to 17500
1700 to 18500
