Die Cutting Press Machine Manufacturer For Sale

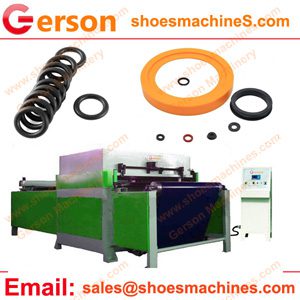

Rubber O-ring Flat Washers Cutting Machine

This machine suits for plenty of gaskets and o-rings,including the EPDM O-Rings
Fluorosilicone O-Rings Teflon Encapsulated O-Rings,Nylon O-Rings,Neoprene O-
Rings,Polyurethane O-Rings,Natural O-Rings etc.
Gerson die cutting machine suitable for most rubber gaskets and o-rings.
Gerson could do custom made special requirement including the cutting table size,cutting
force ,etc.

1.travelling head press
The travelling head eqquiped with cutting die can be changed easily for cutting different
shapes. Automatic travelling head is easy to set for high production.welcome to see the
Product Categoriesm for the nomal detailed information .
2.beam press
The following including cross-head beam press,full beam press etc, automatic cutting
system are seted to improve the production efficiency. The Product Categories have more
detail information according to your need.



Model GRB-25(30) GRB-35(40) GRB-50 GRB-60 GRB-80 GRB-100 GRB-150(200) GRB-300(400,500)
Max cutting force(T) 25T,30T 35T,40T 50T 60T 80T 100T 150T, 200T 300T,400T.500T or more
Distance betweenupper press board andworktable(mm) 50-180 50-240 50-240 50-240 50-240 50-240 50-240 50-240
Cutting area(mm) 1250×500 1250×6001250×710 1250×800 1250×800 1250×800 1250×900 1250×1000 1250×1500
1470×500 1470×6001470×710 1470×800 1470×800 1470×800 1470×900 1470×1000 1470×1500
1600×500 1600×6001600×710 1600×800 1600×800 1600×800 1600×900 1600×1000 1600×1500
Motor power 1.5KW 3KW 4KW 5.5KW 7.5KW 7.5KW 11KW 22KW
Electric SupplyVoltage 3 phases x440/415/400/380/220/200V, 50/60 Hz
Machine Net weight (KG) 1400 1700,1800 2800 3500 5000 6500 9000 12000
1500 1800,2000 3200 3800 5400 7000 9500 13000
1700 2000,2200 3400 4200 5800 7500 10000 14000
 Gerson could design and manufacture according to customer production requirement.
