silicone rubber seal cutting machine

Gerson silicon rubber seal cutting machine is die cutting machine for Gasketing material: Gasket Sealing, sheet, foam and felt and plastic for a wide variety of companies in the electronic, automotive, telecommunications, photographic, flexographic and appliance industries and material including the following:

Buna-N – Rubber & Sponge
EPDM – Rubber & Sponge
Neoprene – Rubber & Sponge
Silicone – Rubber & Sponge
Viton Rubber & Sponge. Viton® is a registered trademark of DuPont Performance Elastomers
Red Rubber
Pure Gum Natural Rubber
Cloth Inserted Rubber-Diaphragm
FDA Materials
Garlock Sheet
Vellumoid (Vegetable Fiber)
Cork, Cork & Rubber (Amorim Industrial Solutions)
SAE Industrial Felt Products
Compressed Non-Asbestos “Klingersil” Brand.
Flexible Graphite
Latex
Precision Plastics; Mylar®, Polyvinyl Chloride, Polycarbonate, Kapton®, Sintra®, Lexan®. Ppoleythenes- UHMW, HDPE, LDPE, PETG, Polypropylene
Polyurethane
Sponge Rubber – Open & Closed Cell
Teflon
Acco-Pac Style Materials
SBR
Butyl
Paper and Paperboard Products

There have two kinds of die cutting machine following for the above material:

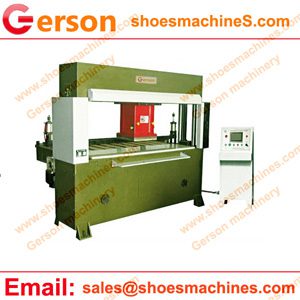

silicone rubber seal cutting machine
silicone rubber seal cutting machine

1.Both for cutting soft or semi-rigid in single layer or multiple layers.
2.Cutting head left and right together with the cutting dies ensures the clear view over the table.
3.Fully automatic cutting system available including feeding, cutting, knock-out and stacking system make high productive.
5.Large cutting bed with 500*500 mm trolley or 600*600 or 1000 mm *1000 mm trolley or more wide trolley ,Any size trolley can custom made.
6.From 25T to 100T cutting force for choice or can custom made.
7.Special custom design or specifications welcome.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 2200X600mm etc.,
Cutting Head

Movable trolley

500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,

silicon rubber seal beam cutting machine

1. Operate the structure of double cylinder and precise four-column automatic balancing links to make sure same cutting depth in each and every cutting region.
2. If the pressure plate presses downward to touch the cutting dies, the appliance automatically slowly cuts, that make that there are no error involving the top and bottom layers of cutting materials.
3. Have setting structure especially, that makes adjustment of stroke safe and accurate coordinating with cutting force and cutting height.
4. Set automatic force feed to ensure the precision of machine and raise longevity of machine.
Applications:
From the smallest 25 Ton for the largest 500 Tons and up on request, Gerson Precise cutting machine are adaptable to some lots of applications. Suited to cutting many materials:Leather,rubber,fabric,plastic,paper,paperboard etc.,

Feed Systems Available: Hand Placed Material
Roll Feed Systems
Clamp Feed Systems
Single and Dual Sliding Tables
Manual and Powered Tables

Custom special requirement are available upon request.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
