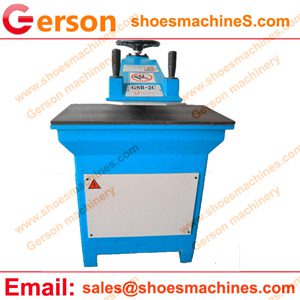

Gerson manual test sample die cutting machine is used in lab or small shop or institution.The test sample or specimen can be plastic ,leather,fabric ,rubber etc.,
1.Only use double hand easy push the button that make safety of operator.
2.The die cutting machine is hydraulic driven type clicker press style make the machine quickly moved and high cutting force for die cutting the test speciment or sample material.
3.The die cutting machine can die cut any shapes by using cutting knife.die together.
4.To meet the need of large cutting table size, large cutting table ,or any special requriement ,Gerson could manufacture according to the detailed requirement.
5.Any other more information or question,please contact Gerson sales department.
| Model | GSB,GR,GRA model |
| Maximum Cutting Force | 8-30 tons |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-180mm |
| Electrical Supply | 3×440/415/400/380/220 or 1×220/110 , 50/60 Hz |
| Cuttting table size | 800,900,1000,1200×400,500mm |
| size | 660×780×1500mm or more |
| Motor Power | 0.75KW,1.1KW |
| Net Weight (N.W.) | 450Kgs-1100Kgs |
