Gerson 30 ton clicker press have two types one is swing arm clicker press ,the other is traveling head clicker press.

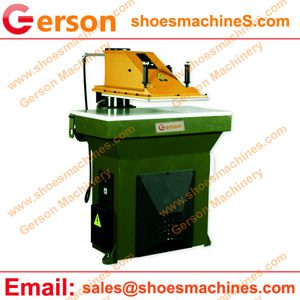

30T ton clicker press
Normal swing arm clicker press is from 8 tons to 28 tons.Gerson also could design and manufacture 30 ton clicker press.
Feature:
1. The machine body are cast iron with firm structure and light weight.
2. It is provided with automatic lubricating system to lessen abrasion and prolong service life.
3. Double hands operation function guarantee the safety of operators.
4. Double-direction oil way design provides stability and reliability.
Model
Maximum Cutting power(ton)
Area of work table(mm)
Swaying arm width
Cutting table
Motor power
Machine dimensions（mm）
Net weight(with oil)
Gross weight
GRA-220
216KN(22T)
900×430
370mm
90mm
0.75Hp
900×850×h1400
650kg
750kg
GRA-270/300
27/30 tons
1000×500
370mm
90mm
1.1Hp
1000×1050×h1410
850kg
900kg
