Gerson 12 ton clicker press mean the clicker press model have 12 ton cutting force power.Normal Gerson have 8 ton to 28 tons cutting power clicker press ,25 tons to 100 tons traveling head press ,25 tons to 500 tons beam press.

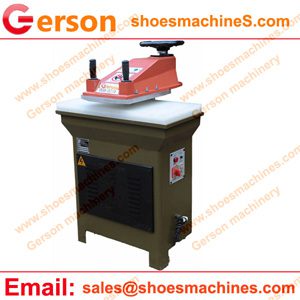

12 Ton clicker press
12 ton clicker press feature:
1.Gerson brand new clicker press ,the max cutting force 12 tons.if you want more cutting force ,Gerson have many models for choice.
2.The clicker press upper board can swing easily when change for the cutting knife/die for die cutting the material.
3.The clicker press can be used for die cutting nonmetal material from leather ,fabric,paper to semi-hard material plastic,PVC,ABS,PC,etc,,
4.Using hydraulic system to make the press machine easy operation and self-lubricating system to reduce wear and extend the service life of the machine.
5.Any special requirement welcoem to contact for custom built.
Cutting area
800,900*400mm
Max cutting force
12tons (others 8-28tons )
Motor Power
2HP
Stroke
90mm
N.W.
470Kg
G.W.
500kg
Color
Custom build
Arm Width
350*400mm( others available)
Voltage
three/single phase,380v/220v/110V
Hydraulic oil
46# 48# 68#
Dimensions
900*760*1260mm
Packing size
1000*860*1500mm
