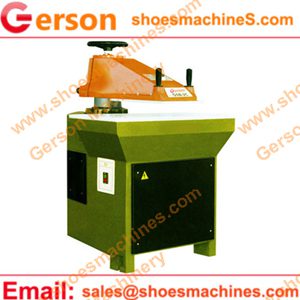

Gerson clicker press machine with 25 ton pressure . This clicker press is designed small-sized, taking little space but is advanced equipped. Generally speaking, it is adopted by small and medium business, which asks for only low production.
25 ton clicker press
1.There are such materials as leather, rubber, fabric, plastic, foam, composite, cork, wood panel, PVC, ABS; fiber paper can be cut by the machine.
2. With easy design, the machine can be operated even by non-experienced workers. Just put both hands on the machine and press the button, without any difficulty and risk.
3. Superior hydraulic system is adopted in this machine to provide strong enough driving power. Meanwhile, the machine body made up of high quality components can carry out the cutting operation smoothly.
4. A great advantage of the machine is the swing arm. It can be flexibly moved when changing the cutting die or any other similar cases.
5. This machine has the max cutting pressure ranging from 8T to 30 T to choose from; even larger ones can also be ordered to order. If pressure larger than 500 T is needed, we can make that for you as well.
Model
GSB,GR,GRA,GRB serials
Maximum Cutting Force
8Tons-500Tons or More
Cutting speed
0.085m/s
Adjustable stroke
5-300mm or more
Tension distance
60-350mm or more
Cuttting table size
650×330mm to 3000mm×2500mm
size
660×780×1500mm to 2800×3200×1700mm
Motor Power
0.75KW to 22Kw
Net Weight (N.W.)
550Kgs to 18000kgs
