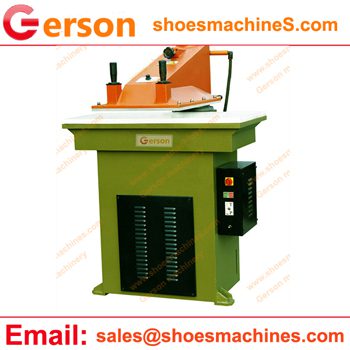

Ares F70 Cutting Machine With Rotating Arm clicking press
Ares F70 Cutting Machine With Rotating Arm clicking press is Ares model die cutting machine .It is 27 ton cutting force.It is also have the model F45,F50,F60 and F70.
Ares F70 Cutting Machine With Rotating Arm clicking press
1.Gerson also have from 8 ton to 28 ton swing arm type die cutting press or clicker press .it is widely used in many industry .
2.Double hand operation make the safety for worker.it is very easy for operation .
3.It works with the die mold or cutting die ,you just place the die mold on the material ,Then press the button ,the upper beam will descend down to cut out the shapes by the die.
4.Gerson can custom build if you need any special requirement ,or have many differenet model for your prodcution choose .No special fees.
Model
F45/GR-20C
F50/GR-27C
F60/GR-27C/1
F70/GR-27C/2
Max. cutting power
20 ton
27 ton
27 ton
27 ton
Maximum stroke(mm)
80
100
100
100
Cutting table(mm)
900 x 430
900 x 450
1000 x 500
1200 x 500
Arm width(mm)
370
370
500/600
500/600
Motor power
HP. 1
HP. 1,5
HP. 1,5
HP. 1,5
Net weight with oil
Kg. 570
Kg. 780
Kg. 840
Kg. 910
Sizes about (mm)
1000 x 900
h. 935
900 x 1000
h. 1370
1000 x 1000
h. 1370
1200 x 1030
h. 1370
Sizes sea packing(mm)
1050 x 1085
h. 1500
1050 x 1150
h. 1570
1150 x 1150
h. 1570
1350 x 1180
h. 1570
Gross weight and volume with sea packing
Kg. 640
m3 1,7
Kg. 900
m3 1,90
Kg. 980
m3 2,10
Kg. 1055
m3 2,50
