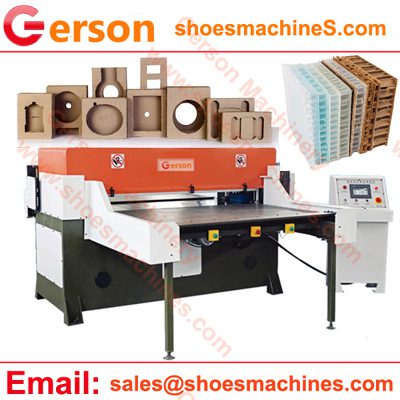

A honeycomb sheet die-cutting machine is a specialized die cutting press engineered to precisely cut out any shape from honeycomb sheets,board or panels that feature a honeycomb core structure. This includes a wide range of products such as cardboard honeycomb,PP (polypropylene) honeycomb sheets, paper-based honeycomb board, and foam board etc.,.
Precision and Accuracy:This Gerson machine is designed for high precision to meet specific design requirements, ensuring clean and accurate cuts even with intricate shapes.
Material Compatibility: Specifically engineered to handle various thicknesses and sizes of PP honeycomb sheets, paper-based,cardboard honeycomb,Foam board materials and along with other similar plastic ,leather,fabric,cork,rubber etc.,And cutting be used for cutting packaging inserts and boxes, pallet sleeves and layer pads, automotive interior components products.,
Custom Cutting Die:Die-cutting involves using a specialized tool, known as a “die mold,” to cut or stamp or punch the desired shape out of the material. The upper beam is pressed down to cut out the material where is placed on a flat bed .
Hydraulic systems: Deliver consistent and uniform pressure across the entire cutting die, ensuring a clean and precise cut without burrs or damage to the honeycomb structure. This is critical for maintaining the material’s integrity and aesthetic.
Self-Balancing Structure:Auto-balance structure of double-cylinder, four-column and self-balance connecting rod ensure equal pressure distribution across the entire working area, leading to uniform cuts.
Automation: The press can be feature automation for feeding sheets, positioning, and ejecting cut pieces, which enhances efficiency and reduces manual labor.
Die Change System: Allows for quick and easy changes of dies, enabling flexibility for different cutting patterns and designs.
Control System: Typically equipped with user-friendly control interfaces (e.g., PLC control with touch screens) for setting parameters, monitoring the process, and making adjustments.
GRB(C) Series Honeycomb Sheet Die Cutting Machine Specifications
Specification
Details
Notes
Model Series
GRB(C)-25T to GRB(C)-500T
Scalable models to meet diverse cutting force requirements
Max. Cutting Force
25 Tons to 500 Tons
Critical for material thickness and die complexity
Daylight Opening
50 – 240 mm (Upper to Bottom Table)
Maximum working space for die height and material
Cutting Stroke
0 – 170 mm (Adjustable)
Precision control for cutting depth, including kiss-cutting
Cutting Area (Bed Size)
Customizable from 500mm x 500mm up to 3000mm x 3000mm
Configured based on your specific material dimensions and die design
Motor Power
1.5 kW to 22 kW
Varies with cutting force and overall machine size
Electrical Power
220V / 380V / 415V, 50-60Hz
Configurable to regional standards and factory requirements
Machine Net Weight
1,600 kg to 16,500 kg (for smaller to medium force models)
17,000 kg to 17,500 kg (for higher force models)
Weight varies significantly with cutting force and configuration
Need a quote ? Please provide the following information to Gerson ,we will get the price immediately:
Maximum dimensions and material of the honeycomb sheets you will cut.
Typical thickness range of your honeycomb material.
Desired production volume per shift/day.
Complexity of the shapes you need to cut (simple rectangles vs. intricate custom shapes).
Any specific automation levels desired.
