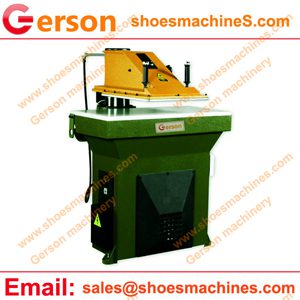

Atom clicker press SE20,SE8,SE20C,SE22,SE24,SE25 is Atom type clicker press which is used for many industry such as shoes,bags,gasket etc.,
Atom clicker press SE20,SE8,SE20C,SE22,SE24,SE25
1.The machine have automatic stroke-End setting-up to cut with dies of different heights without the need for manual adjustment.
2.It is very simple for using .Compare to the hand cutting .It will be fast and easier.
3.To guarantee maximum visibility of the material of sheet, the swing arm or beam can be easily moved left-right by the operator in order to collect the cutting pieces and placing the material and cutting die.
4.Gerson accept any cutting machine custom build for your production .Free to contact us if you have any question related about the die cutting machine and die molds .
Model
Cutting Table
UP Beam Head
Max Pressure
Net Weight
SE25L
1000×500
610mm
25T–245Kn
1050 (kg)
SE25
1000×500
500mm
25T–245Kn
1030 (kg)
SE25C
900×450
500mm
25T–245Kn
900 (kg)
SE24
1000×500
370mm
25T–245Kn
990 (kg)
SE24C
900×450
370mm
25T–245Kn
880 (kg)
SE22
1200×500
500mm
22T – 216Kn
1060 (kg)
SE20
900×450
370mm
22T – 216Kn
880 (kg)
SE20C
900×430
370mm
22T – 216Kn
630 (kg)
SE8
600×300
300mm
8T – 78 Kn
430 (kg)
