Gerson die cutting press cardboard,paperboard or similar material products.

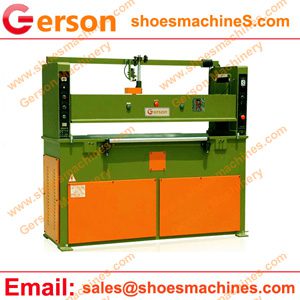

Cardboard Die Cutting Press
1.The hydraulic driven system make high quality, reliability, high speed And Double hand operation make the safe.
2.Adopted automatic lubricating system which supplies oil to prolong the service life of the machine.
3.The cutting depth of cutter is simple to set and the cutting is accurate.
4.it’s equipped with fine adjusting device, therefore the cutting stroke can be adjusted easily.
5.Large area of pressing board of cutting makes it possible to cut large-sized materials.The cutting table and board can be custom built.
| Model | GRP(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
