Cushions, sound proofing and deadening foams Pad/sheet hydraulic die cutting machine

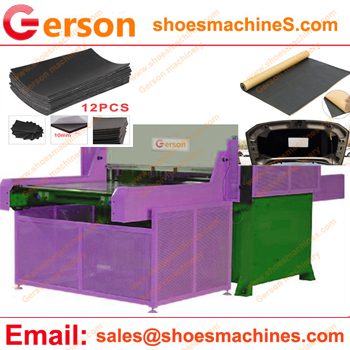

Cushions, sound proofing and deadening foams Pad/sheet hydraulic die cutting machine is hydraulic die cutting press machine for die cutting the foam pad sheet to make the foam Soundproofing Wedge Foam Tiles Sound Proof Absorbing Isolation Deadening products for example :3mm Car Sound Proofing Deadening Heat Insulation Closed Cell Foam, Acoustic Foam Studio Soundproofing Foam Tiles Hexagon Bevel etc.,

Cushions, sound proofing and deadening foams Pad sheet hydraulic die cutitng machine
Cushions, sound proofing and deadening foams Pad sheet hydraulic die cutitng machine

1.This hydraulic beam die cutting press machine can feed the foam pad sheet or roll into the cutting bed by manual or autoamtic feedin.
2.The machine have enough table and hydraulic pressure to meet to your requirement for cutting the material .
3.Gerson can make the die mould or cutting die to work with the machine .Any custom cutting die or cutting machinery welcome to contact Gerson.
4.It is also suitable for cutting textiles, foam, man-made leathers, real leather, rubber, plastic,sponge,cork,film,fabric,…etc.,

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X700mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
