cutting machine for rubber gaskets and o-rings

There have many gaskets and o-rings,including the EPDM O-Rings Fluorosilicone O-Rings
Teflon Encapsulated O-Rings,Nylon O-Rings,Neoprene O-Rings,Polyurethane O-Rings,Natural O-Rings etc.,

Gerson die cutting machine can be for most rubber gaskets and o-rings.
Gerson could do custom made special requirement,such as the cutting table size,cutting force ,etc.,

1.travelling head press

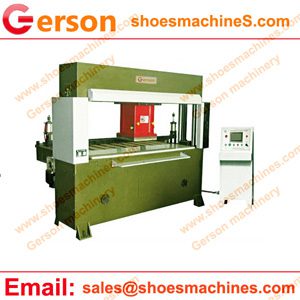

Automatic gasket cutting machine
The travelling head mounted with cutting die and can easily change if you want to cut different shapes. Automatic travelling head can set by worker easily and improve the prodution effeciency.For the nomal detailed information ,please see the Product Categories.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,

2.beam press

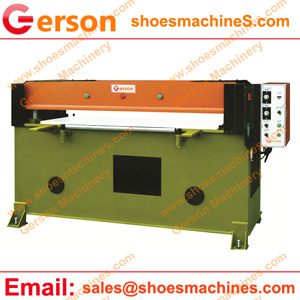

hydraulic beam cutting press
including cross-head beam press,full beam press etc., automatic cutting system can also improve the production efficiency. For the details ,also see the Product Categories.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X700mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
