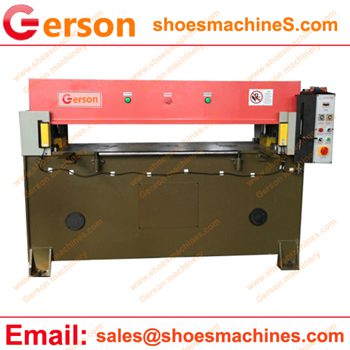

Four post clicker press is one of clicker press that have four post or 4 column .It is also know as four post beam press .
1.the four post clicker press or four post beam press is widely used in cutting out the material in sheet or roll material in single or multi-layers of leather ,fabric ,rubber ,plastic ,foam ,felt ,cork ,paper sheet ,cardboard etc.,
2.The clicker press have four post or four coloumn which is strong and stable enough for die cutting out the material .
3.Four post ,double cyclinder ,hydraulic system ,auto balance all making the easy and stable enough to stand heavy load.
4.The material can feed in manual or automatic sheet feeder or roll feeder by CNC control.
5.All custom build machinery welcome to contact Gerson .
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(500-3000)mm |
| Based on your material and die | |
| Example: 1600X700mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
