Gerson Hydraulic Moving Head Press is hydraulic press machine that used for cutting out the most soft and semi-rigid materoal such as the leather,fibreglass,leather,foam,rubber,plastic etc.,

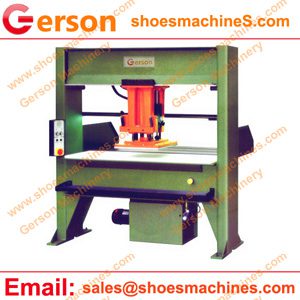

Hydraulic Moving Head Press
1.It is good for the large width material in sheet or in rolls and the cutting out parts are smaller .such as for die cutting out sole ,foor pad ,gaskets etc.,
2.The manual type moving head can be moved easily by hand .And the automatic moving head is controlled by PLC ,it is auotmatic moving from left to right for continous die cutting .
3.It is using hydraulic control system ,Double oil cylinder and precise four-post automatic balance connecting rod structure, which can guarantee the absolutely same cutting depth of each cutting position.
4.The machine cutting area size,upper moving head size ,cutting pressure ,feed type etc., Gerson accept all custom build to meet production request.
5.More information and specification ,could contact Gerson at any free time.
| Model | GRM-25,30,40,50,60,80,100 |
| Max Cutting Force | 25 to 100 tons |
| Cutting table Widths | 1800~2500mm or more |
| Cutting Head/Movable trolley | 500 x 500mm up to 1000 x 1000mm |
| Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,co | |
