This hydraulic punch press is designed for die cutting soft and semi-rigid material such as plastics, fabric, foam, paper, cork, rubber, composite, canvas, nylon, PVC, ECA and many other similar materials.
Also Gerson machinery can the hydraulic punch press for hard material such as steel ,stainless steel sheet etc.,
The following hydraulic punch press is traveling head punch press .we also have other model punch press.

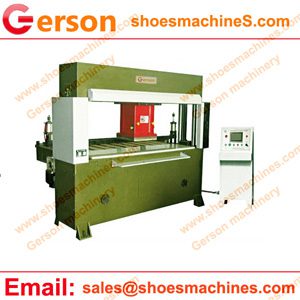

Hydraulic Punch Press
Key Feature
1. The machine has a obvious advantage that its travelling head is able to move without difficulty. For manual operation mode: both-hand operation is requested under work to avoid danger; for automatic operation mode: PCL directs the travelling head to cut continuously, which saves a lot of time and labor force.
2. High output can be reached by the machine regardless of sheet or roll, single layer or multi layers materials.
3. The four-oriented balance system, 2 double cylinders help the machine to perform well. The former: extend the using time, keep the precision, lower the energy consumption, make the machine easy to maintain. The latter: provides with strong power.
4. Details including upper travelling head, cutting head, the cutting force and the stroke can be customized.
Model
GRMA-25,30,40,50,60,80,100,150
Max Cutting Force
25 to 150 tons
Cutting table Widths
1800~2500mm or more
Cutting Head/Movable trolley
500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
