Clicking Presses with Turning Arm is most for die cutting small pieces:leather goods ,gaskets, abrasives, foam & rubber, plastics, composites, cardboards etc.,

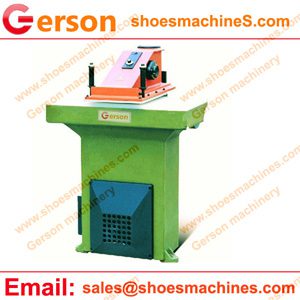

Oil-Dynamic Clicking Presses with Turning Arm
1.Automatic stroke-end setting-up to use cutting knives of different heights without any adjustment.
2.Control push-buttons with built-in device for 5/10 of second maximum delay operation to ensure positive safety.
3.Two push-buttons and one potentiometer to set the cutting power.
4.The main control organs are covered by international patents.
5.The cutting force from 22 tons to 27 tons.
6.Three button handle is available.
Model
Cutting Table
UP Beam Head
Max Pressure
Net Weight
GRA-270L
1000×500
610mm
25T–245Kn
1050 (kg)
GRA-270M
1000×500
500mm
25T–245Kn
1030 (kg)
GRA-270C
900×450
500mm
25T–245Kn
900 (kg)
GRA-250L
1000×500
370mm
25T–245Kn
990 (kg)
GRA-250M
900×450
370mm
25T–245Kn
880 (kg)
GRA-220L
1200×500
500mm
22T – 216Kn
1060 (kg)
GRA-220M
900×450
370mm
22T – 216Kn
880 (kg)
GRA-220C
900×430
370mm
22T – 216Kn
630 (kg)
GRA-10C
600×300
300mm
8T – 78 Kn
430 (kg)
Electric Supply Voltage: 3 phases×440/415/400/380/220/200V, 50/60 Hz,
