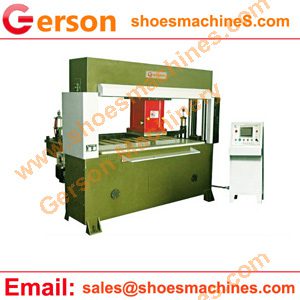

PLC control automatic feed traveling head cutting machine
PLC control automatic feed traveling head cutting machine is automatic feed the material by PLC and continuous traveling head cutting machine .
PLC control automatic feed traveling head cutting machine
1.It is wiedely used in many industry and die cutting :Automotive components,Abrasives pads,Carpet and flooring sheet,gasket material,Facial mask, Powder puff, Wet towel, Glasses cloth,Shoes insoles,Medical products,Packaging Foam inserts,Packing blister plastic etc.,
2.Equipped with four column ,Double oil cylinders , auto-balancing link structure and central oil supply automatical lubricating system, to ensure working precision and prolong the service life of machine.
3. Computer PLC programmable touch screen can display,Two or three axis servo motor positioning system, highposition accuracy. The traveling head is driven by servo-drive ball screw which saving materials and labor cost.
4. This travelling head cutting machine automatically completes the feeding material into the machine and cutting out the shapes by the cutting die tools, and the displacement distance and feeding length can be set precisely.
5.Because of this autmatic feed and continusous cutting ,the whole machine needs only one worker, the production efficiency can be increased 3-5 times.
Gerson have many options and other models ,Please contact for more details.Welcome custom built.
Model
GRMA-25,30,40,50,60,80,100,150,200
Max Cutting Force
25 to 200 tons
Cutting table Widths
1800~2500mm or more
Cutting Head/Movable trolley
500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
