100T cutting machine is 100 ton die cutting machine manufactured and designed by Gerson machinery.It is widely used in large area die cutting material .

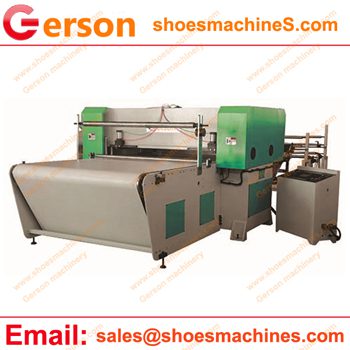

100T Cutting Machine
1.100T cutting machine uses the four column or 4 post ,double cylinder ,automatic balance system ,double crank connecting rod mechanism which can make sure the cutting depth at every cutting postion is the same.
2.100T is one of hydraulic cutting force ,it is also available other cutting force ,such as 120T or 120 ton ,150T or 150 ton ,180T or 180 ton ,200T or 200 ton ,250T or 250 ton ,300 ton , or more 400T ,500 T or more .
3.Gerson die cutitn gmachine can be the material such as fabric leather, carpet, rubber, film, foam,cloth, ponge,shoes,suitcases,seat covers,facial mask,plastic ,soft toys,artificial flowers, bags,cardboard ,plywood,EPE,EVA,blister ,XPE,rubber insole,etc.
4.The machine can feed the material by your hand manual.Or feed the material by automaticly by the sheet feeder or roll feeder depending on your material.
5.All Gerson die cutting machine can custom built ,welcome to contact us for further information.
Model
GRB(C)-25T to 500T
Max cutting force(T)
From 25 Tons to 500 Tons
Range between working table
50-240mm (Upper to Bottom Table)
Stroke Adjustment
0-170mm
Cutting area(mm)
(500-3000)X(500-3000)mm
Based on your material and die
Example: 1800X800mm etc.,
Motor power
1.5 to 22KW
Electric Power
220V/380V/415V,50-60hz etc.,
Machine Net weight (KG)
1600 to 16500
1700 to 17500
