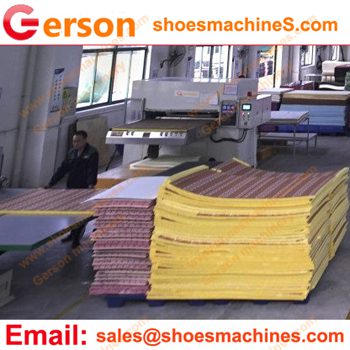

100T PVC Foam Board Hydraulic Cutting Machine

100T PVC Foam Board Hydraulic Cutting Machine is the 100 ton die cutting press machine manufacturing for PVC foam board cutting PVC board, PP sheet, ABS sheet, TPO sheet .

100T PVC Foam Board Hydraulic Cutting Machine
100T PVC Foam Board Hydraulic Cutting Machine

1.It is widely usedin many form industry not only for PVC foam board cutting ,it is also cutting the other foam sponge ,or ohter similar products .

2.The cutting pressure is 100 tons ,it is also available the other cutting pressure .For four column hydrauli press ,it is from 30 ton upto 500 tons.

3.The press machine can feed the pvc foam board or sheet into cutting bed by the manual table or automatic feed table .Single or Double , Manual or Automatic slide table,Pneumatic pinch rolls
Clamping beam feeds ,Sheet feedsis choosed based on your requirement.

Flatbed Steel Rule Die Cutting machine
Flatbed Steel Rule Die Cutting machine

4.Gerson accept any custom build ,The range of sizes that can be customized for your application .welcome to contact Gerson at any time.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1800X800mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
