1.clicker press is easy adjustment of the cutting strok
2. Designed for different height cutting dies without the need for adjustment and control push buttons with built in devices for 3/10 second maximum delay operation to insure operator safety.
3.These presses range from 20-25 tons of cutting force with bed sizes up to 20″x40″ and head sizes up to 24″ in width.

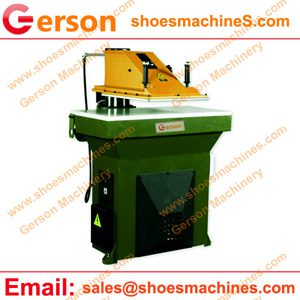

27T Hydraulic Clicker presses
Model
Cutting Table
UP Beam Head
Max Pressure
Net Weight
GR-270L
1000×500
610mm
25T–245Kn
1050 (kg)
GR-270M
1000×500
500mm
25T–245Kn
1030 (kg)
GR-270C
900×450
500mm
25T–245Kn
900 (kg)
GR-250L
1000×500
370mm
25T–245Kn
990 (kg)
GR-250M
900×450
370mm
25T–245Kn
880 (kg)
GR-220L
1200×500
500mm
22T – 216Kn
1060 (kg)
GR-220M
900×450
370mm
22T – 216Kn
880 (kg)
GR-220C
900×430
370mm
22T – 216Kn
630 (kg)
GR-10C
600×300
300mm
8T – 78 Kn
430 (kg)
