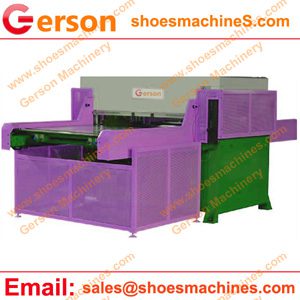

Automatic large cutting table cutting machine can die cut out out for large variety of materials,mostly for soft and semi-rigid material including Abrasive, Automobile components, bag, ball, cardboard, Leather Carpet, cork, craft, EPE, EVA, fabric, felt, fiber, Foam, Garment, gasket, glove, Label, mesh, O-ring, Paper, plastic, rubber, sandpaper, shoes etc.
1. One or two sliding tables can be optionally installed due to different cases, which make the feeding operation easier.If material in rolls,also have roll feed system and clampl feed system .
2. Cutting table of this machine is very large; it can be customized to many other sizes.
3. The balance of the machine is kept by a set of devices like shock persist structure and mechanical balance system, thus making the cutting operation very accurate.
4. The machine body is designed in four column structure to ensure stability.Additionally, auto lubrication system prevents the machine from wear and prolongs its using time.
5. Many cutting force (25T to 500T) and cutting bed size (600*600mm to 2500*2500mm) can be chosen.
6. More auto feeding & cutting models are available.And more special requirement ,please feel free to contact Gerson.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
