Die Cutting Machine

38 Years+ Manufacturer

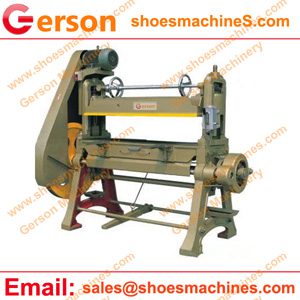

clicker machine non hydraulic,mechanical

Gerson have own clicker machine non hydraulic it is mechanical cutting machine.

The non-hydraulic mechanical cutting machine is no need to add the oil .It is mechanical driven.

1.Also used for Fabric, rubber, plastic, leather, nylon, paper board, synthetic ,composite,cork etc.,

2.It can be die cut any shapes or pattern by the custom build die/knife.

3.The working table size can be 500mm-1800mm.

4.Cutting force can be up to 30 tons.

Model	MGTD-10/12/15/18	MGTD-20/25
Gantry width	1000mm-1600mm	1000mm-1800mm
Cutting thickness	64mm	80mm
Adjustment range of worktable	50mm-200mm	50mm-200mm
Cutting frequency	76/min	76/min
Max Cutting Force	15T-20T	18T-25Tons
Motor power	3Kw	3Kw
