Gerson GRA serie clicker press designed and manufactured by Gerson machinery.This is one of Gerson clicker press is for use on various sheet materials from fabric,leather,rubber,paper,cork ,plastic and other similar material.

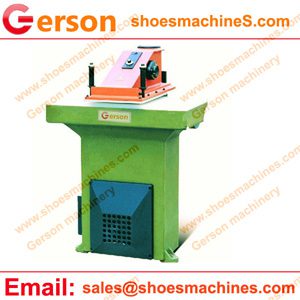

Gerson GRA Clicker Press
1.Strong cast iron body and complete hydraulic system make the high performance and quiet running.
2.Double hand operated make sure the operator safe and easy operation without any special training.
3.Easily swing upper arm easily moved for the next cutting or change the die/mould .
4.Automatic stroke-end setting-up to use cutting die/knife/mold of different heights without any adjustment.
5.Also have three puch button for different pressure settings .
6.Can die cut out one layer or several layers.
7.Custom build or any further reqest ,welcome to contact Gerson.
Model
GRA-220/3
GRA-270/3
GRA-270M/3
GRA-270L/3
Maximum cutting force
22T
27T
27T
27T
Table area
900×430mm
1000×500mm
1000×500mm
1000×500mm
Swing arm width
370mm
370mm
500mm
610mm
Cutting stroke
90mm
90mm
90mm
90mm
Motor power
1.1KW
1.5KW
1.5KW
1.5KW
Electric Supply Voltage
3×440/415/400/380/220/200V, 50/60 Hz
Single phase 240V/220V, 50/60 Hz
Packing size
1050×1000×1500mm
1150×1200×1500mm
1150×1200×1500mm
1150×1200×1500mm
N.W(with oil)
650kg
960Kg
1050kg
1200kg
G.W
740kg
1120Kg
1210kg
1360kg
