LCD Polarizer film die cutting machine is suitable for special die cutting punching of electronics industry, PET, PP, PVC, polarizer, composite film, viscose, insulation material, shielding material, 3M, SONY, NTTO, TEST, PORON (rubber), etc., as well as LED, LCD, Backlight, back light source (RW-100, RW-50, RF-188) astigmatism film (Prince of Japan: 90, 75, 60D204, D105,
DB642, CH19), anti-static protective film, black and white double-sided adhesive, opaque aluminum foil, brightness enhancement film, laser paper, etc.

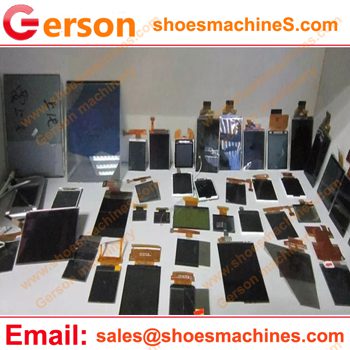

Polarizer including linear polarizers and circular polarizers.
structure of the polarizer includes: the most intermediate PVA (polyvinyl alcohol), two layers of TAC (triacetate), PSA film (pressure sensitive adhesive), Release film (release film) and Protective film (protective film).
Among them, the PVA layer is polarized, but PVA is easily hydrolyzed. In order to protect the physical properties of the polarizing film, the composite layer on both sides of the PVA has high light transmittance, good water resistance and certain mechanical strength. The (TAC) film is protected, which forms the original plate of the polarizer.

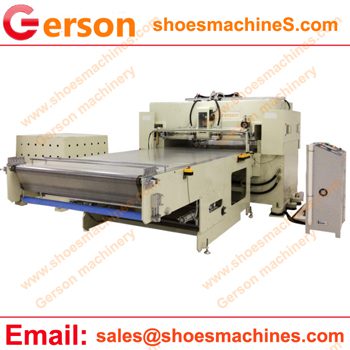

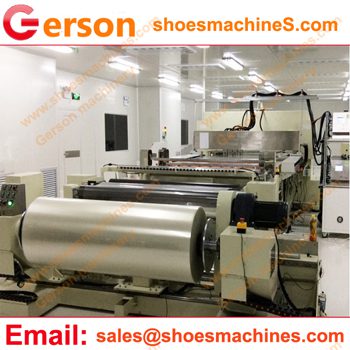

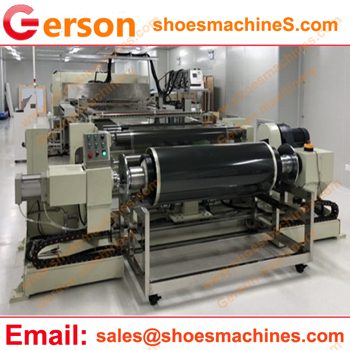

LCD Polarizer film die cutting machine
4. The stroke is controlled by the encoder and can be set on the panel. The cutter height can be set with the cutter die to make the die cutting adjustment convenient and accurate.
5.The upper and lower working surfaces of the machine are processed by precision machining, heat treatment and fine grinding. The stainless steel plate can be punched and the die cutting pressure accuracy is ±0.15mm.
Scope of this LCD Polarizer film die cutting machine application:
2, Dustproof materials: cotton pad, camera cotton, high density sponge, filter cotton, dust net, non-woven fabric.
3, anti-shock products: pull back rubber pad, rubber, transparent foot pad, PORON pad, 3M, flame retardant EVA, high foaming.
4, insulation materials: fire fast paper, aluminum foil, copper foil, PVC, PET, kraft paper, sponge jacket, pearl jacket.
5, EMI shielding materials: copper foil, aluminum foil, conductive cloth, absorbing materials.
6, heat-resistant insulation materials: enamel film, transparent mica film, fiber cloth, insulation cotton (cloth).
7, paper packaging materials: corrugated paper, wrapping paper and cardboar
Please feel free to contact us at any time for further infomation.Gerson can custom build any die cutting solution to meet your production requirement.
No matter what material and products that you want to diecut or punch ,we could help ou to find good solution.Contact us ,we will be your good partner.
The below data just for your reference. We could choose the right model or build the custom model for your production.
Standard Gerson die cutitng machine Specification data:
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(500-3000)mm |
| Based on your material and die | |
| Example: 1800X600mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
