Leather clicking press

Gerson clicking press for leather ,including Genuine Leather,Artificial Leather,PU leather,PVC leather,Top grain leather,full grain leather etc., which used for the shoes,handbags,wallets,patch,tag,holder,etc.,

The following clicking press for cutting leather choice:

1.GRA-220 GRA-270 swing arm cutting machine

Leather clicking press
Leather clicking press
Model Maximum Cutting power(ton) Area of work table(mm) Swaying arm width Cutting table Motor power Machine dimensions（mm） Net weight(with oil) Gross weight
GRA-220 216KN(22T) 900×430 370mm 90mm 0.75Hp 900×850×h1400 650kg 750kg
GRA-270 264.6KN(27T) 1000×500 370mm 90mm 1.1Hp 1000×1050×h1410 850kg 900kg

2.GSB-2C models

leather clicker press GSB-2C

Model GSB-2C/10/12/14/15/16/18/20/25
Cutting Force 10,12,14,15,16,18,20,25 Tons
Sway Arm Width 330X450mm,350X450mm,450X550mm
Stroke Adjustment 5-75mm
Distance Between Upper Table And Lower Table 60-140mm
Table Area 900X400mm,1000X500mm
Electric Supply Voltage 3×440/415/400/380 /220V, 50/60 Hz
Motor Power 0.75kw,1.1kw,1.5Kw
Packing Size(LXWXH) 1100X1100X1700mm
Weight 500Kg/650kg/1000kg/1100kg
Hydraulic oil (46#) 50 Liters

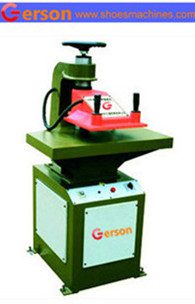

3.GSB-8/10 small die cutting press

leather die clicking press

Model GSB-8 GSB-10
Maximum   Cutting Force 8Tons 10Tons
Cutting speed 0.085m/s 0.085m/s
Adjustable stroke 5-60mm 5-60mm
Tension distance 60-130mm 60-130mm
Cuttting table size 650×330mm 650×330mm
size 660×780×1500mm 660×780×1500mm
Motor Power 0.75KW 0.75KW
Net Weight (N.W.) 550Kgs 600Kgs













4.GR-20C,GR-27C 20T to 27 Ton clicker press

clicker press for leather

Model

GR-20C

GR-27C

GR-27C/1

GR-27C/2
Max. cutting power

ton. 20

ton. 27

ton. 27

ton. 27
Maximum stroke(mm)

80

100

100

 100
Cutting table(mm)

 900 x 430

 900 x 450

1000 x 500

1200 x 500
Arm width(mm)

 370

370

500

500
Motor power

HP. 1

HP. 1,5

HP. 1,5

HP. 1,5
Net weight with oil

Kg. 570

Kg. 780

Kg. 840

Kg. 910
Sizes about (mm)

 1000 x 900
h. 935

900 x 1000
h. 1370

1000 x 1000
h. 1370

 1200 x 1030
h. 1370
Sizes sea packing(mm)

1050 x 1085
h. 1500

1050 x 1150
h. 1570

1150 x 1150
h. 1570

1350 x 1180
h. 1570
Gross weight and volume with sea packing

Kg. 640
m3 1,7

Kg. 900
m3 1,90

Kg. 980
m3 2,10

Kg. 1055
m3 2,50
