Gerson plastic clicking press is hydraulic clicking die cutting press for cutting plastic or similar material: shoe sole, bag, glove, gasket, rubber, leather, synthetic leather and leather products, fibers, textiles, paper products etc.,

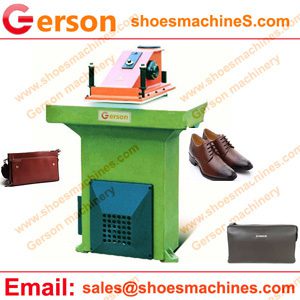

Plastic clicking press
1.Two-handed operation design and emergency stop device can ensure safe operation;
2.Hydraulic pressure system have 8 tons to 30 tons cutting pressure to cut different material in wild range of hardness.
3.It can be easily use by worker ,low noise and Low maintenance.
4.It can be die cutting different shapes when using any kinds of cutting kinfe/dies.
Model
GSB,GR,GRA serials
Maximum Cutting Force
8Tons,10,12,14,15,16,18,20,22,25,27,28,30 ton
Cutting speed
0.085m/s
Adjustable stroke
5-180mm or more
Tension distance
60-190mm or more
Cuttting table size
650×330mm,800,900×430mm,1000×500,600mm
size
660×780×1500mm to 1350×1180×1700mm
Motor Power
0.75KW to 1.5Kw
Net Weight (N.W.)
550Kgs to 1200kgs
