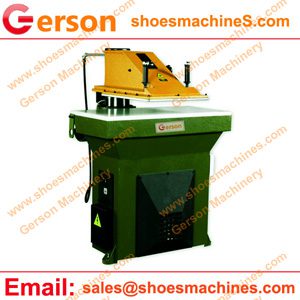

Gerson long stroke distance cutting machine for very thick material.Normal swing arm cutting machine stroke is within 100 mm .Gerson long stroke distance cutting machine can be for 250 mm.Also with large daylight(Tension distance Distance between upper table and lower table) .
Gerson beam press also accept long stroke .
The following is for Long stroke distance swing arm cutting machine:
1. The machine body are welded by steel sheets with firm structure and light weight.
2. It is provided with automatic lubricating system to lessen abrasion and prolong service life.
3. Double hands operation function guarantee the safety of operators.
4. Double-direction oil way design provides stability and reliability.
5. Two modes such as microcomputer controller and PC electronic circuit are optional for controlling the lower limit position of stroke with high precision, flexibility and convenience.
| Model | GSB-8/10,GSB-2C,GR,GRA |
| Maximum Cutting Force | 8Tons,10,12,14,15,16,18,20,22,25,27,28 ton |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-250mm |
| Tension distance | 60-270mm |
| Cuttting table size | 650×330mm,900×430mm,1000×500mm |
| size | 660×780×1500mm to 1350×1180×1700mm |
| Motor Power | 0.75KW to 1.5Kw |
| Net Weight (N.W.) | 550Kgs to 1200kgs |
